In analog electronics, a filter is a circuit that selectively allows certain frequencies to pass while blocking or attenuating others. Filters play a crucial role in signal processing, noise reduction, and shaping waveforms in applications ranging from audio processing to communication systems. Whether the goal is to remove unwanted noise, enhance certain frequencies, or isolate specific signals, filters are essential. "From the music we listen to, to the clarity of a phone call, filters are behind the scenes shaping our auditory and communication experiences."
Filters operate on specific electrical properties, and their design leverages components like resistors, capacitors, and inductors. Each component responds differently to different frequencies, and by arranging them in specific configurations, we can create circuits that affect only certain parts of the signal spectrum. Filters are generally defined by their frequency response, which describes how they react to various input frequencies. There are two primary metrics to understand how a filter performs:
Cutoff Frequency (fc): The frequency at which the filter begins to significantly attenuate the signal.
Bandwidth (BW): The range of frequencies that a filter allows through without significant attenuation.

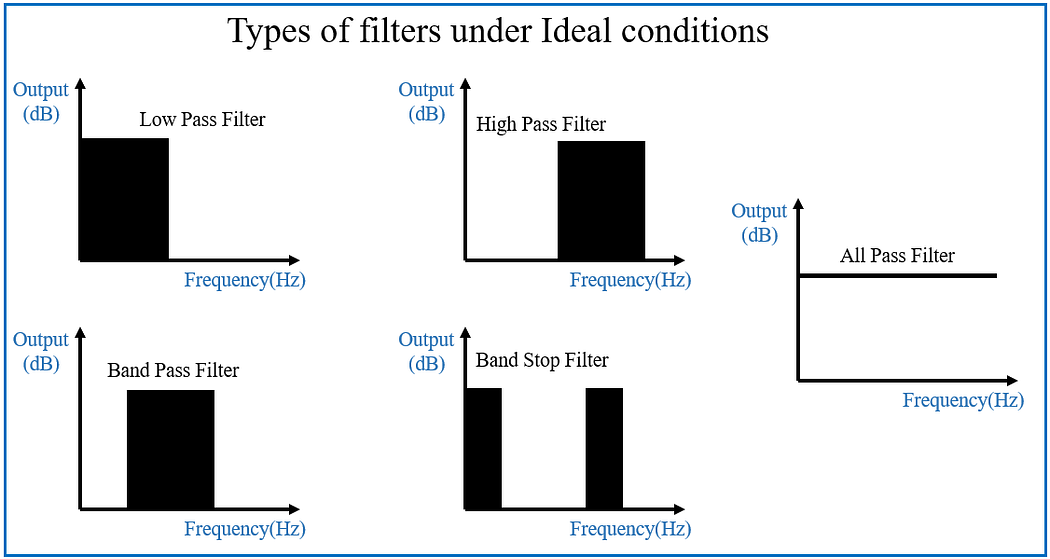

Types of Filters
Filters come in various types, each with specific characteristics and applications. Let’s explore the main types in detail.
Low-Pass Filter (LPF):
- A low-pass filter allows frequencies below a specified cutoff frequency (fc) to pass through while attenuating those above it.
- LPFs are widely used to reduce high-frequency noise in signals, making them essential in applications like audio processing, where they help to remove unwanted high-frequency sounds.
- Key characteristics of a low-pass filter include its cutoff frequency, beyond which signal attenuation begins, and the slope or order of the filter, which determines the rate of attenuation for frequencies beyond the cutoff. The steeper the slope, the more effective the filter is at removing high frequencies.
- LPFs find applications in audio equipment to reduce high-frequency noise, in digital-to-analog converters (DACs) to smooth output, and in communication systems to limit high frequencies, thereby saving bandwidth.
High-Pass Filter (HPF):
- A high-pass filter functions by allowing frequencies above a specified cutoff frequency to pass through while attenuating those below it.
- HPFs are particularly useful for applications where low-frequency noise or DC offsets need to be eliminated.
- The main characteristics of an HPF include its cutoff frequency, below which signal attenuation occurs, and the filter’s response, which indicates the rate at which lower frequencies are reduced. This reduction rate depends on the filter’s design order, such as first-order or second-order.
- HPFs are widely used in audio systems to block unwanted low-frequency hum or rumble, in radio communication to remove low-frequency noise, and in data acquisition systems to eliminate DC offsets and drift, thus ensuring signal accuracy.
Band-Pass Filter (BPF):
- A band-pass filter is designed to allow a specific range of frequencies, called the passband, to pass while blocking those outside this range.
- Band-pass filters are essential for applications requiring isolation of a particular frequency range.
- Key characteristics include the bandwidth (the range of frequencies allowed to pass), the center frequency (the midpoint of the passband), and the Q factor (which measures the filter’s selectivity — higher Q values result in a narrower passband).
- Band-pass filters are commonly used in tuning circuits for radio receivers, allowing them to isolate desired frequency bands; in audio equalizers to enhance specific frequency ranges; and in biomedical devices, where they help detect and analyze signals such as heart or brain activity.
Band-Stop (Notch) Filter:
- A band-stop filter, also known as a notch filter, attenuates signals within a specific frequency range while allowing those outside this range to pass through. This type of filter is particularly valuable for removing unwanted noise or interference at specific frequencies.
- Important characteristics of a band-stop filter include the stopband (the range of frequencies attenuated) and the Q factor (which determines the notch’s sharpness — a higher Q factor results in a narrower notch).
- Band-stop filters are frequently used in power systems to remove mains hum at 50Hz or 60Hz, in audio processing to eliminate resonant frequencies or feedback, and in medical equipment like EEG machines, where they help filter out interference from unwanted signals.
All-Pass Filter:
- An all-pass filter is a unique type of filter that allows all frequencies to pass through equally but alters the phase relationship between the input and output signals. Although it doesn’t attenuate any specific frequencies, it’s valuable for controlling signal timing or phase, especially in audio and communication systems.
- Characteristics of an all-pass filter include its ability to shift the phase angle without impacting amplitude and its design purpose, which focuses on phase adjustment rather than frequency attenuation.
- All-pass filters are widely used in audio systems to correct phase mismatches, in communication systems to align signal timing, and in compensation circuits where precise phase alignment is necessary.
Active vs. Passive Filters
Filters are generally classified as either active or passive, each with distinct features:
Active Filters:
- Active filters utilize active components such as operational amplifiers (op-amps) in conjunction with passive components like resistors, capacitors, and inductors to filter signals. They can amplify the input signal, offering improved performance in terms of gain and impedance matching.
- Key features of active filters include their ability to provide gain, meaning they can amplify the output signal, and their high input impedance combined with low output impedance, allowing them to connect to other circuit stages without causing significant loading effects.
- Common types of active filters include low-pass, high-pass, band-pass, and band-stop filters, designed with varying orders (first-order, second-order, etc.) to achieve desired cutoff frequencies and roll-off rates.
- However, active filters require a power supply to operate their active components, making them suitable for applications in audio processing, signal conditioning, and communication systems where maintaining signal integrity and amplification is crucial.
Passive Filters:
- Passive filters consist solely of passive components — resistors, capacitors, and inductors — requiring no external power source and providing no amplification.
- The key features of passive filters include their inability to amplify the input signal, allowing only for attenuation. They generally have low input and output impedance, which can impact connected circuits, particularly if subsequent stages possess high impedance.
- Common types of passive filters include low-pass, high-pass, band-pass, and band-stop filters, with their performance determined by component values and configuration.
- Since they are constructed only from passive components, passive filters do not require an external power source and are widely used in various applications, including audio systems, radio frequency applications, and any circuits where simple filtering is needed without amplification.
Conclusion
In the realm of analog electronics, filters are indispensable tools that shape the quality and integrity of signals across various applications. By selectively allowing certain frequencies to pass while attenuating others, filters enhance our ability to process and communicate information effectively. Understanding the different types of filters — low-pass, high-pass, band-pass, band-stop, and all-pass — as well as the distinction between active and passive filters, equips designers and engineers with the knowledge necessary to choose the right filter for their specific needs.
