In the realm of digital electronics, the ability to perform arithmetic operations efficiently is crucial. Among the fundamental components enabling these operations are adders, with the Full Adder standing as a significant advancement from the Half Adder. This blog will explore the Full Adder, its components, functionality, and its crucial role in digital circuit design.
What is a Full Adder?
A Full Adder is a digital circuit that adds three single-bit binary numbers: A, B, and an input carry, C_in. It produces two outputs: a sum bit (S) and an output carry bit (C_out). Unlike the Half Adder, which can only add two bits without considering a carry, the Full Adder can add three bits and account for a carry input.
Theoretical Background
Before delving into the Full Adder, it is essential to understand the basics of binary addition. In binary arithmetic:
- 0 + 0 = 0
- 0 + 1 = 1
- 1 + 0 = 1
- 1 + 1 = 10 (which is 0 with a carry of 1)
Components of a Full Adder
A Full Adder consists of three primary components:
- XOR Gate: Generates the sum bit (S), considering all inputs A, B, and C_in.
- AND Gate: Produces the carry bit (C_out), considering all possible combinations of A, B, and C_in.
- OR Gate: Combines the carry outputs from the AND gate and the XOR gate to produce the final carry output.
The logical expressions for the outputs are:
- Sum (S) = A XOR B XOR C_in
- Carry out (C_out) = (A AND B) OR (C_in AND (A XOR B))

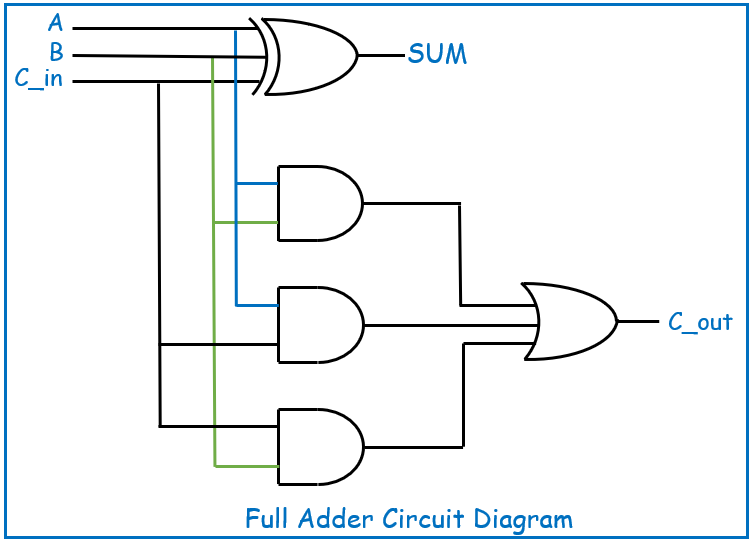

Circuit Diagram
The circuit diagram of a Full Adder is more complex than a Half Adder, incorporating XOR, AND, and OR gates as shown below:
![](https://miro.medium.com/v2/resize:fit:1050/1*yys0v5V3-nvZbRaWBr1G5Q.png)

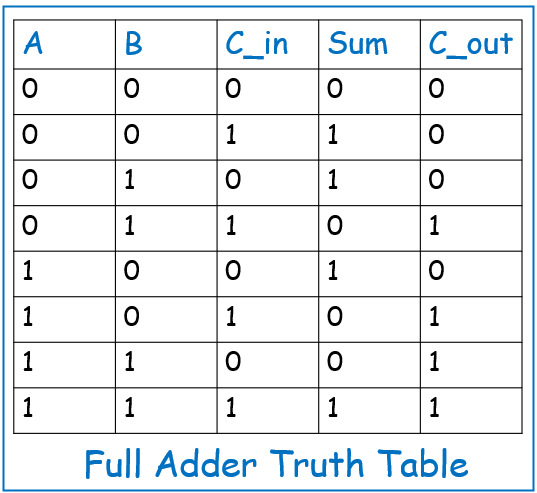

Truth Table
The truth table below illustrates how the Full Adder operates for all possible input combinations of A, B, and C_in:
![](https://miro.medium.com/v2/resize:fit:806/1*4ucEiWj6WBEThxzu1Gs3UQ.png)

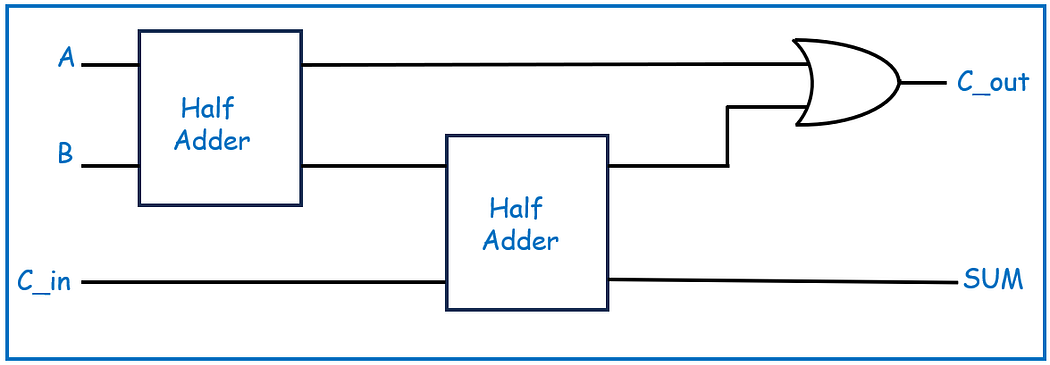

If we want to design the Full Adder using half adders, the block diagram and circuit diagram for it will be as follows:
![](https://miro.medium.com/v2/resize:fit:1050/1*i19PXOoTC36s-KqG0F2NxA.png)
![](https://miro.medium.com/v2/resize:fit:1050/1*GVdmK5fnnlrDNI4pnU6PPA.png)
Applications of Full Adder
Full Adders are crucial components in digital electronics and have several applications, primarily in the construction of more complex arithmetic circuits. Here are some key applications:
- Cascade to Build Multi-bit Adders: Full Adders are used to construct adders capable of adding multi-bit binary numbers. This forms the basis of ripple-carry adders and other multi-bit adder architectures.
- Arithmetic Logic Units (ALUs): Integral to ALU design, Full Adders perform binary addition operations as part of microprocessors and digital systems.
- Digital Signal Processing (DSP): Used in DSP applications for efficient data manipulation tasks requiring binary addition.
- Binary Calculators: Foundational units in simple binary calculators to perform basic arithmetic operations.
- Memory Address Calculation: Aid in calculating memory addresses during read and write operations in memory systems.
- Digital Counters: Assist in increment operations for counting sequences in digital counters.
- Encoders and Decoders: Used to convert data between different binary codes, essential in digital communication and storage systems.
- Checksum Generators: Generate checksums for error detection and correction in data transmission to ensure data integrity.
- Logic Circuit Design: Serve as teaching tools in educational settings to illustrate the principles of digital logic and binary addition.
Conclusion
The Full Adder represents a significant advancement from the Half Adder in digital electronics, crucial for constructing more complex arithmetic circuits. Its ability to handle three input bits and manage carry operations makes it an essential component in binary arithmetic and digital system design. Understanding the functionality, applications, and implementation of the Full Adder provides a robust foundation for exploring advanced digital circuits.
For practical implementations and further exploration, check out detailed blogs on how to implement a Full Adder using VHDL and Verilog on Xilinx Vivado. Click on the links below to delve into full implementations and testbench code:
Stay tuned for more detailed blogs on combinational circuits and other essential topics in digital electronics.
