Step-by-step guide on how to design and implement a 2:1 MUX using CMOS and sky130nm PDK.

• The purpose of this project is to design a CMOS 2:1 MUX using an Opensource EDA Tool called eSim, an Opensource Spice Simulator called ngspice, and Sky130 PDK.
• To explore the project, you can git clone using the command: git clone Github.

Table of Contents:

1. INTRODUCTION
2. INSTALLATION OF TOOLS
3. CIRCUIT DESIGN
   3.1 REFERENCE CIRCUIT DIAGRAM
   3.2 REFERENCE CIRCUIT WAVEFORM
4. IMPLEMENTATION
5. REFERENCE

1. INTRODUCTION

In this project, I am going to Design and Implement 2:1 Mux using CMOS Technology and I will also implement it using sky130nm technology. Design and Implementation will be done using esim and ngspice software. MUX is a data selector which will give single output from several data inputs. Here we have implemented 2 input MUX which will give single output based on select line input. We can verify the output using Circuit Waveforms. This complete design and implementation is done using VLSI technology which has features such as high speed, low power, low cost, and small size.

2. INSTALLATION OF TOOLS

esim:

esim is an open-source EDA tool used for circuit design and simulation. Using esim we can draw a circuit using Kicad, generate netlist and simulate using Ngspice.

For more information: https://esim.fossee.in/home

Ngspice:

ngspice is the open-source spice simulator for electric and electronic circuits. We can design circuits using JFET, MOSFET, and passive elements like resistors, capacitors, etc.

For more information: http://ngspice.sourceforge.net

Sky130nm PDK:

The SkyWater Open Source PDK is a collaboration between Google and SkyWater Technology Foundry to provide a fully open source Process Design Kit and related resources, which can be used to create manufacturable designs at SkyWater’s facility.

For more information: https://www.layouteditor.org/schematiceditor/libraries/skywater

The Download links for the above software are:

esim: https://esim.fossee.in/downloads

Ngspice: https://sourceforge.net/projects/ngspice/files/

Sky130 pdk: https://static.fossee.in/esim/installation-files/sky130_fd_pr.zip

Follow these steps for Sky130 download and implementaion:

1. Download sky130 from this link mentioned above and unzip it.
2. Save the .cir.out file in the sky_fd_pr folder as .cir file.
3. Open with notepad and add the path .lib “models/sky130.lib.spice” tt at the top.
4. Replace with CMOSP, mos_p with sky130_fd_pr_pfet_01v8 and CMOSN, mos_n with sky130_fd_pr_nfet_01v8.
5. To replace the inductor, capacitor, resistor do it this way, for Ex: L1 out gnd 1m by x1 out gnd mid 0 sky130_fd_pr__ind_03_90.

Note: For more details go to the cells folder in sky_fd_pr.

Open the specific component folder which you want to use.

Then open the test folder and check the SPICE file.

The SPICE file is an example of the implementation of that component.

You will get to know how to use the component in your ckt.

1. Now Run the circuit with ngspice.

To Run the ckt using ngspice:

1. Right click on the .cir file.
2. Click on Open With.
3. Browse for the ngspice.
4. If ngspice is not present scroll down click on More Apps.
5. Go to the FOSSEE folder search for Ngspice and Run it.

3. CIRCUIT DESIGN

Multiplexer (MUX) is a data selector which will send single input data at the output based on select line input. Here we have implemented a 2:1 MUX which has 2 inputs (A and B), 1 output (Y), and 1 select line (S). Output Y will be A or B based on 0 or 1 input at the select line (S). If the select line is “0” output Y will be A and if the select line is “1” then output Y will be B. 2:1 MUX using CMOS will be designed using 2 parts: PMOS (pull-up lattice) and NMOS (pull-down lattice). PMOS circuit is connected to supply voltage VDD and NMOS circuit is connected to ground GND. The equation for output Y will be Y=ASbar + BS. According to circuit design rules, ASbar and BS will be connected in parallel in PMOS lattice and it will be connected in series in NMOS lattice. We know that the output of CMOS is always inverted so we have to connect the CMOS inverter circuit at the output. We will implement this circuit design using sky130nm technology. In the Circuit Waveform, we will verify the above implementation using clock pulse. Output Y will have the same clock pulse sequence as A when S will be “0” and it will have the same clock pulse sequence as B when S will be “1”.

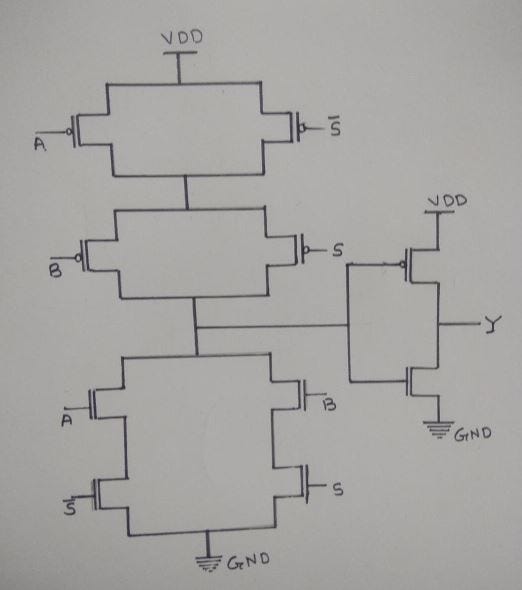

3.1 REFERENCE CIRCUIT DIAGRAM

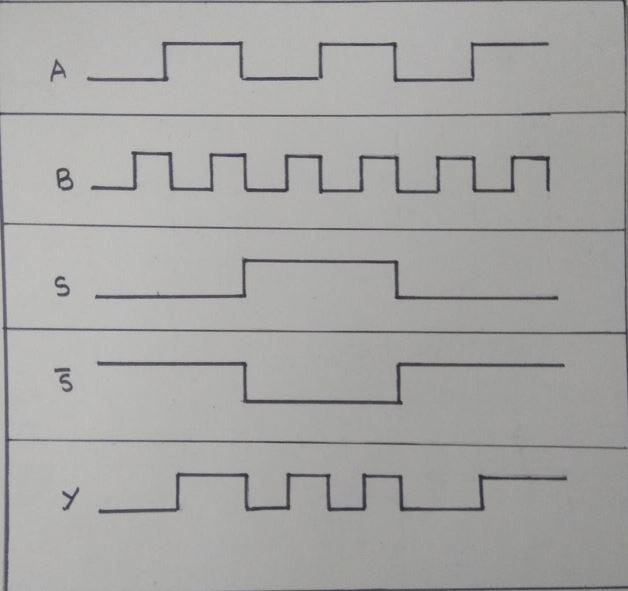

3.2 REFERENCE CIRCUIT WAVEFORM

4. IMPLEMENTATION

The basic element of this designing a CMOS inverter for s and sbar inputs. The circuit diagram for the CMOS inverter will be as follows:

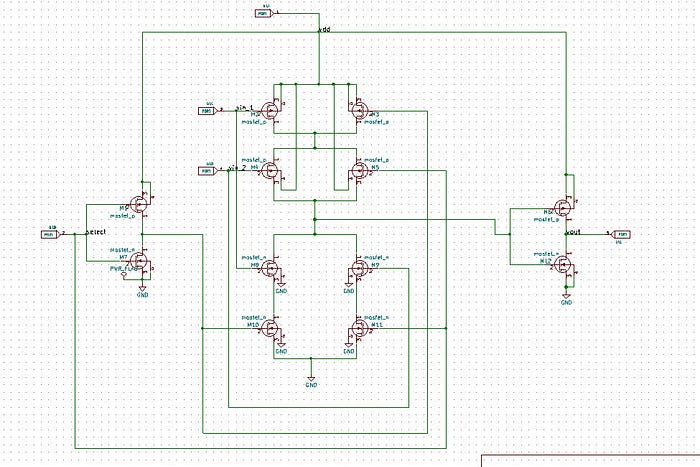

After designing the CMOS inverter for s and sbar we will design the complete circuit using our reference circuit diagram with PMOS logic above and NMOS logic below. After connecting the complete we will get a circuit like below:

Label each and every component and port and check electrical rule checking and generate netlist file using spice and make changes in the netlist to add sky130 models. The netlist generated initially is as shown below:

* C:\SPB_Data\eSim-Workspace\Multiplexer\multiplexer.cir
* EESchema Netlist Version 1.1 (Spice format) creation date: 2/7/2022 9:25:01 PM
* To exclude a component from the Spice Netlist add [Spice_Netlist_Enabled] user FIELD set to: N
* To reorder the component spice node sequence add [Spice_Node_Sequence] user FIELD and define sequence: 2,1,0
* Sheet Name: /
M2 Net-_M2-Pad1_ /vin_1 /vdd /vdd mosfet_p
M3 Net-_M2-Pad1_ Net-_M1-Pad1_ /vdd /vdd mosfet_p
M4 Net-_M2-Pad1_ /vin_2 Net-_M12-Pad2_ /vdd mosfet_p
M5 Net-_M2-Pad1_ /select Net-_M12-Pad2_ /vdd mosfet_p
M8 Net-_M12-Pad2_ /vin_1 Net-_M10-Pad1_ GND mosfet_n
M9 Net-_M12-Pad2_ /vin_2 Net-_M11-Pad1_ GND mosfet_n
M10 Net-_M10-Pad1_ Net-_M1-Pad1_ GND GND mosfet_n
M11 Net-_M11-Pad1_ /select GND GND mosfet_n
M1 Net-_M1-Pad1_ /select /vdd /vdd mosfet_p
M7 Net-_M1-Pad1_ /select GND GND mosfet_n
M6 /vout Net-_M12-Pad2_ /vdd /vdd mosfet_p
M12 /vout Net-_M12-Pad2_ GND GND mosfet_n
U1 /vdd /select /vin_1 /vin_2 /vout PORT
.end
The netlist after making sky130 models syntax changes is as shown below:
* c:\spb_data\esim-workspace\multiplexer\multiplexer.cir
.lib “sky130_fd_pr/models/sky130.lib.spice” tt
xM1 Net-_M1-Pad1_ select vdd vdd sky130_fd_pr__pfet_01v8
xM7 Net-_M1-Pad1_ select GND GND sky130_fd_pr__nfet_01v8
xM6 vout Net-_M12-Pad2_ vdd vdd sky130_fd_pr__pfet_01v8
xM12 vout Net-_M12-Pad2_ GND GND sky130_fd_pr__nfet_01v8
xM2 Net-_M2-Pad1_ vin_1 vdd vdd sky130_fd_pr__pfet_01v8
xM4 Net-_M12-Pad2_ vin_2 Net-_M2-Pad1_ vdd sky130_fd_pr__pfet_01v8
xM3 Net-_M2-Pad1_ Net-_M1-Pad1_ vdd vdd sky130_fd_pr__pfet_01v8
xM5 Net-_M12-Pad2_ select Net-_M2-Pad1_ vdd sky130_fd_pr__pfet_01v8
xM8 Net-_M12-Pad2_ vin_1 Net-_M10-Pad1_ GND sky130_fd_pr__nfet_01v8
xM10 Net-_M10-Pad1_ Net-_M1-Pad1_ GND GND sky130_fd_pr__nfet_01v8
xM9 Net-_M12-Pad2_ vin_2 Net-_M11-Pad1_ GND sky130_fd_pr__nfet_01v8
xM11 Net-_M11-Pad1_ select GND GND sky130_fd_pr__nfet_01v8
Vdd vdd 0 3
Vin_1 vin_1 0 pulse(0 3 0s 0s 0s 5us 10us)
Vin_2 vin_2 0 pulse(0 3 0s 0s 0s 2.5us 5us)
Vd0 select 0 pulse(3 0 0s 0s 0s 10us 20us)
.tran 0.1us 40us
.control
run
plot V(select) + 5 V(vin_2) + 10 V(vin_1) + 15 V(vout)
.endc
.end

Note: sky130_fr_pd file for sky130 model must be present on the same file as .cir.out.

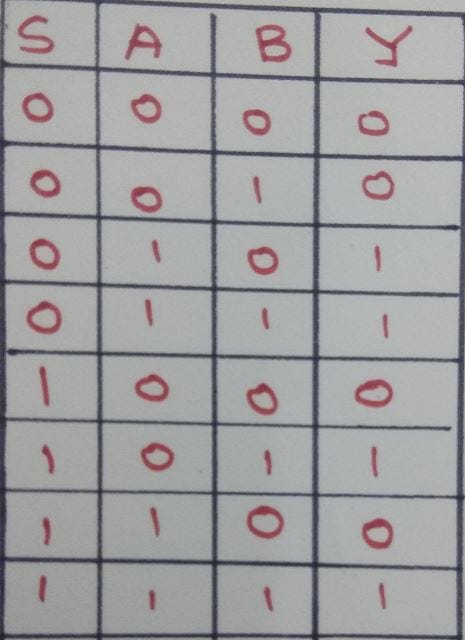

Truth Table for 2:1 mux using CMOS is as shown below:

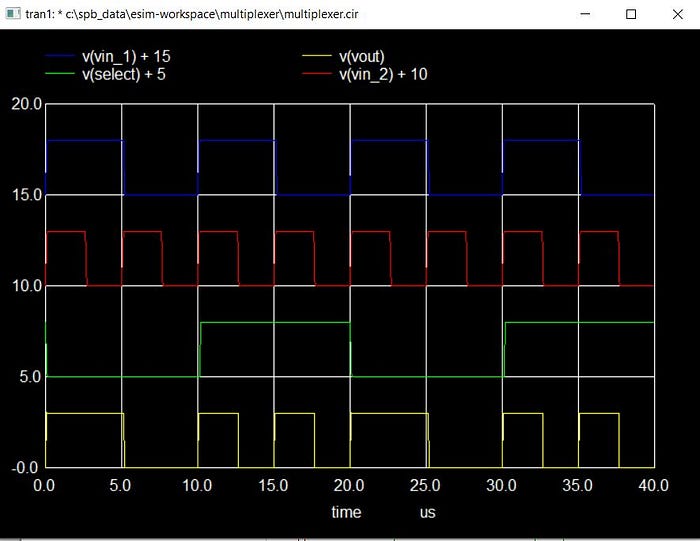

Now, run the .cir.out file using ngspice and we will get the circuit waveforms as follows:

From the above waveform, we can verify the truth table for 2:1 mux using CMOS.

5. REFERENCES:

[1] D. S. D. R. A. Rose V Anugraha. Design and performance analysis of 2:1 multiplexer using multiple logic families at 180nmtechnology.https://ieeexplore.ieee.org/abstract/document/8256918.

[2] S. J. Anjum Aara. Design and implementation of CMOS and cnt based 2:1 multiplexer at 32nm technology. www.irjet.net.

Like, Share and Follow me if you like my content.
