In this project we will see how to implement all Counters with testbench code on Xilinx Vivado design tool.
Step 1: Click on New Project -> Next
![](https://miro.medium.com/v2/resize:fit:1050/1*hGlxEdx-KUjUSV2IK1PqaA.png)
Step 2: Enter Project Name and Select appropriate Project Location -> Next
![](https://miro.medium.com/v2/resize:fit:1050/1*qZSAGz-x7zwjLj10hd_9Hg.png)
Step 3: Select RTL Project -> Next
![](https://miro.medium.com/v2/resize:fit:1050/1*vbi14xT9QkQKcdidz2HwXw.png)

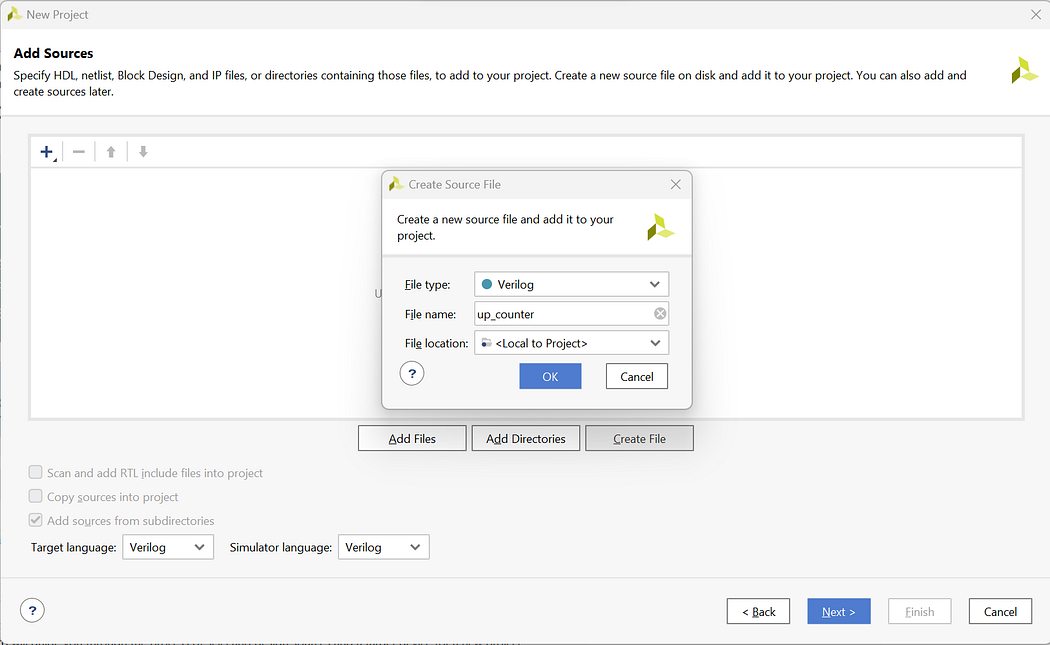

Step 4: Click on Create File and create file with file name up_counter -> Next
![](https://miro.medium.com/v2/resize:fit:1050/1*ZG-5NK-dWeIJ0zNCSoYPLw.png)
Step 5: We will not add the Constraint file So click on Next
![](https://miro.medium.com/v2/resize:fit:1050/1*enycNmOIq9t5iZE6vo54jQ.png)
Step 6: For Default Part click on Next as we are not using any development Board
![](https://miro.medium.com/v2/resize:fit:1050/1*quKE8ykpSxTGZjRwVo7YEQ.png)
Step 7: Check the New Project Summary and click on Finish.
![](https://miro.medium.com/v2/resize:fit:1050/1*TWIYYOQLS-zDTn508EcEZA.png)
Step 8: Now you will be prompted with the Define module page but we will create the complete code from scratch so click on cancel and Yes

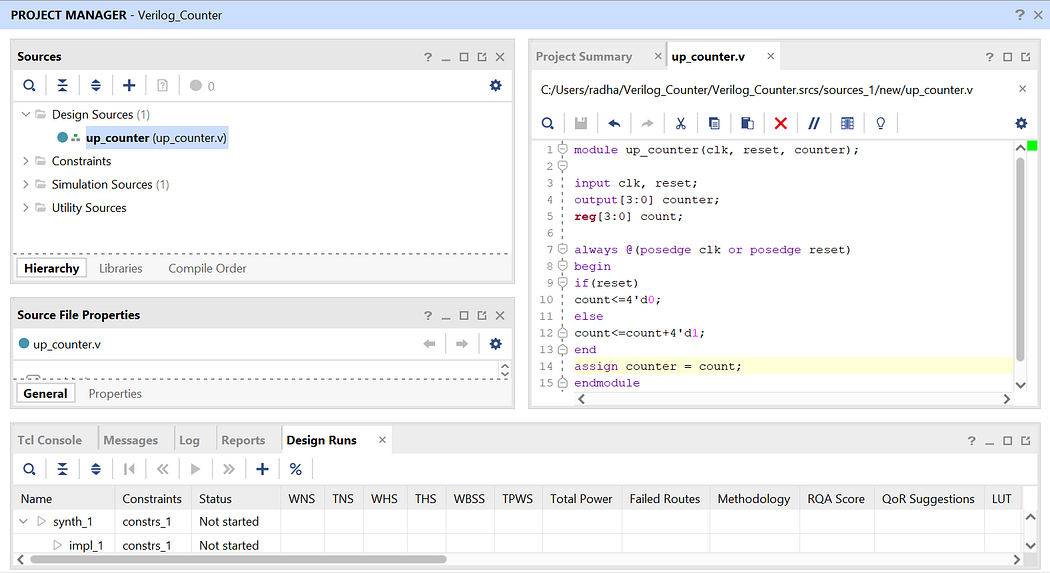

Step 9: Now on the Home Page click on Sources -> Design Sources -> Non-module Files
![](https://miro.medium.com/v2/resize:fit:1050/1*1uh41WbJDxLDQ95ZgSHiUg.png)
Step 10: Enter the below codes in the “up_counter.v” files.
module up_counter(clk, reset, counter);
input clk, reset;
output[3:0] counter;
reg[3:0] count;
always @(posedge clk or posedge reset)
begin
if(reset)
count<=4'd15;
else
count<=count-4'd1;
end
assign counter = count;
endmodule
Step 11: Now to write the testbench code for and gate right click on Design Sources -> Add Sources -> Add or create design sources -> Create File -> Add File name as tb_up_counter -> Finish -> Ok -> Yes
Step 12: Now open the testbench file and enter the below testbench code
module tb_up_counter();
reg clk, reset;
wire[3:0] counter;
up_counter uut(clk,reset,counter);
initial begin
$display(“Testing UP Counter”);
clk=0;
forever #5 clk=~clk;
end
initial begin
reset=1;
#20;
reset=0;
end
endmodule
Here, in testbench code we do not define values in entity hence we have kept it empty. Then in architecture we have copied the components of up_counter and defined signals for connecting the ports of counter. Inside the process statement we write all test cases and define the respective delays.

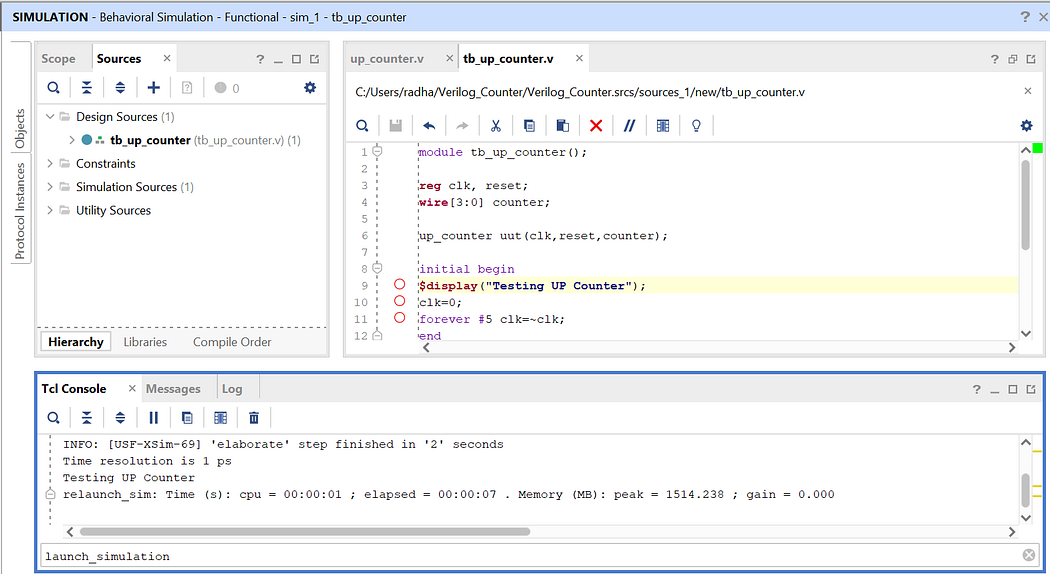

Step 13: Now as we have written all the codes let’s launch the simulation. Enter launch_simulation in the Tcl Console and press Enter.
![](https://miro.medium.com/v2/resize:fit:1050/1*04Np2-ViQ5hAm5c1YhIiRQ.png)

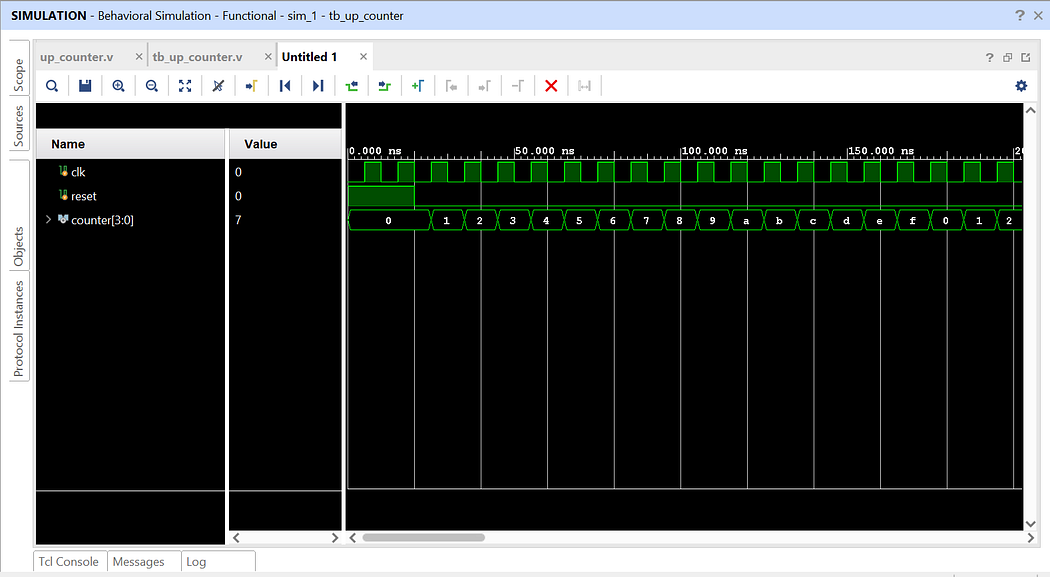

We have successfully implemented up counter with testbench code. Click on Zoom Fit to see the output waveform more clearly and verify the outputs.
![](https://miro.medium.com/v2/resize:fit:1050/1*0M8-UpUWQF4XVghWdwuYNA.png)
If you want to implement other counters the process would be same except the Verilog codes. Visit below links to see how to implement other Counters:
1] Down Counter
2] Up Down Counter
In this way, we can implement Counters using testbench codes.
