JK Flip Flop

 jk_flip_flop.vhd

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;

entity jk_flip_flop is
Port ( J, K, CLK : in STD_LOGIC;
Q, Qb : out STD_LOGIC);
end jk_flip_flop;

architecture Behavioral of jk_flip_flop is

begin
process (J, K, CLK)
variable temp: std_logic;
begin

if (rising_edge(CLK)) then
if(J=’0' and K=’0')then
temp:=temp;
elsif(J=’0' and K=’1')then
temp:=’0';
elsif(J=’1' and K=’0')then
temp:=’1';
elsif(J=’1' and K=’1')then
temp:=not temp;
else null;
end if;
end if;
Q<=temp;
Qb<= not temp;

end process;
end Behavioral;

tb_jk_flip_flop.vhd

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;

entity tb_jk_flip_flop is
end entity;

architecture Behavioural of tb_jk_flip_flop is

component jk_flip_flop is
Port ( J, K, CLK: in STD_LOGIC;
Q, Qb : out STD_LOGIC);
end component ;

signal J, K, CLK, Q, Qb : STD_LOGIC;

begin
uut: jk_flip_flop port map(
J => J,
K => K,
CLK => CLK,
Q => Q,
Qb => Qb);

Clock : process
begin
CLK <= ‘1’;
wait for 10 ns;
CLK <= ‘0’;
wait for 10 ns;
end process;

stim : process
begin

J <= ‘0’ ; K<=’0';
wait for 20 ns;
J <= ‘0’ ; K<=’1';
wait for 20 ns;
J <= ‘1’ ; K<=’0';
wait for 20 ns;
J <= ‘1’ ; K<=’1';
wait for 20 ns;
end process;
end Behavioural;

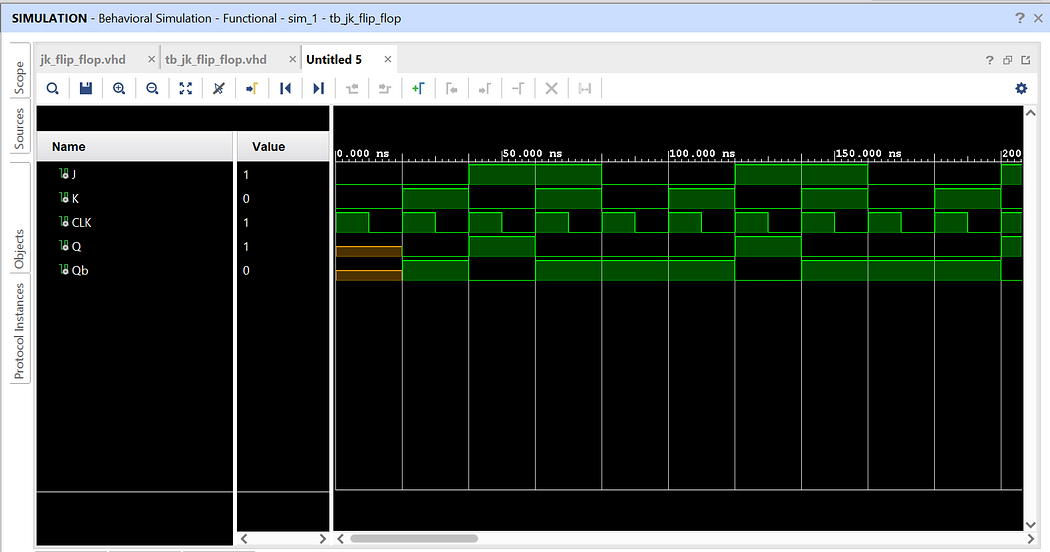

The output waveform for JK Flip Flop will be as follows:
