Mastering Verilog: Implementing a Half Subtractor

 Welcome to another edition of our Verilog series! In this blog post, we’ll explore the implementation of a Half Subtractor in Verilog. A half subtractor is a combinational circuit used to subtract two single-bit binary numbers and produce a Difference and a Borrow as outputs.
It is a fundamental building block in digital arithmetic circuits.

Below is the Verilog code for a Half Subtractor, implemented using a Behavioral Modeling approach:

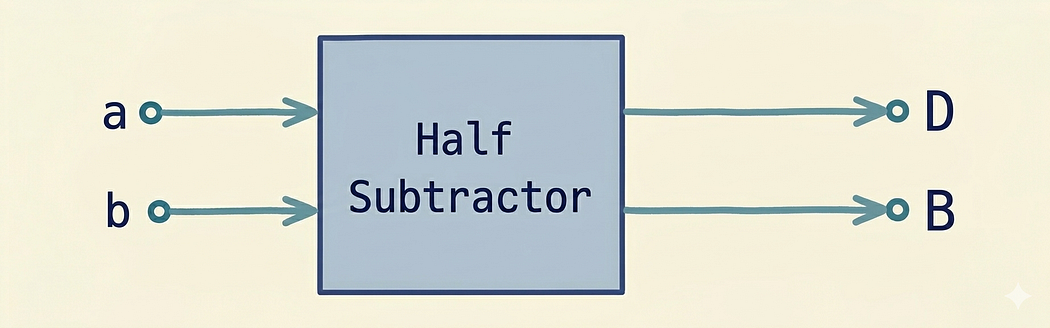

📊 Block Diagram

Press enter or click to view image in full size

In the behavioral modeling approach, we define the output using simple logical expressions based on the input values.

module half_subtractor(input a, b, output D, B);
  assign D = a ^ b;
  assign B = ~a & b;
endmodule

🧪 Testbench

module tb_top;
  reg a, b;
  wire D, B;

  half_subtractor hs(a, b, D, B);

  initial begin
    $monitor("At time %0t: a=%b b=%b, difference=%b, borrow=%b",$time, a,b,D,B);
    a = 0; b = 0;
    #1;
    a = 0; b = 1;
    #1;
    a = 1; b = 0;
    #1;
    a = 1; b = 1;
  end
endmodule

Explanation:

• The Difference (D) is calculated using the XOR operation between inputs a and b.
• The Borrow (B) is generated when a is 0 and b is 1, implemented as ~a & b.
• The design is purely combinational and updates output instantly with input changes.
• The testbench verifies all possible input combinations.

Conclusion

This Verilog implementation of a Half Subtractor demonstrates how basic arithmetic operations can be modeled using simple logic expressions. It serves as a foundation for designing more complex circuits like full subtractors.

What’s Next?

Try extending this design to a Full Subtractor and observe how borrow propagation works. In the next post, we’ll explore more arithmetic circuits and their Verilog implementations.

Happy Coding! 🚀
